Product details

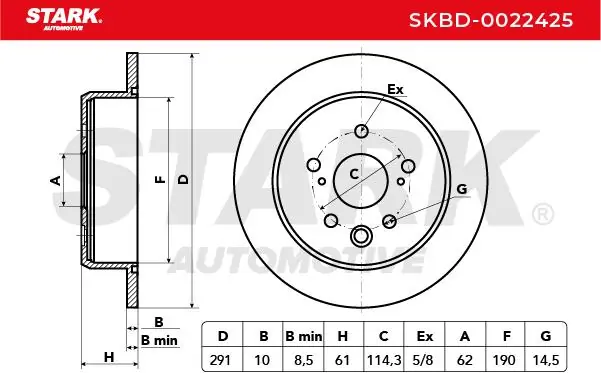

14 specifications · 4 OEM numbersSpecifications
- Fitting Position
- HA
- Height [mm]
- 61,2
- Weight [kg]
- 4,8
- Bore Diameter [mm]
- 14,5
- Brake Disc Type
- 1
- Brake Disc Thickness [mm]
- 10
- Minimum thickness [mm]
- 8,5
- Hole Arrangement/Number
- 05/08
- Inner Diameter [mm]
- 190
- Outer Diameter [mm]
- 291,0
- Centering Diameter [mm]
- 62
- Bolt Hole Circle Ø [mm]
- 114,3
- Supplementary Article/Info 2
- 52
- Supplementary Article/Info 2
- 57
OEM numbers
- 424310N010
- 424310P010
- 4243130280
- 4243130300
Compatible vehicles
23 vehicles
- 200d (ALE20_, ALE20R)
- 350 (GSE21)
- 350 (GSE21_, GSE21R)
- 250 (GSE20_, GSE20R)
- 250 AWD (GSE25_, GSE25R)
- 2.5 (GRX130)
- 2.5 4WD (GRX135)
- 250 (GSE20)
- 220d (ALE20)
- 2.5 (GRS181, GRS180)
- 3.0 (GRS182)
- 250 AWD (GSE25_)
- 350 AWD (GSE26)
- 2.5 VVTi (GRX120_, GRX120)
- 3.0 VVTi (GRX121)
- 3.0 4WD (GRS183)
- 3.0 (GRS182)
- 250 (GSE20)
- 250 (GSE30_, GSE30R)
- 300h (AVE30_, AVE30R)
- 300 (GSE22_)
- 300h (AVE30_, AVE30R)
- 3.0 VVTi (GRX121)
